Easee
Charge
- SKU
- 10243
A powerful and future-proof electric car charger for all commercial charging needs. Easee Charge is only available in the UK
OZEV Domestic
Yes
OZEV Commercial
Yes
ENA Connect Direct AC EV
EASEE/09725
ENA Power Generation
Not applicable
Technical Status Snapshot
Specification
| Easee | |
| Model | Charge |
| Part number / SKU | 10243 |
| Surface Mounted | |
| Commercial | |
| Primary Interface | LED |
| Not applicable | |
| Not applicable | |
| AC Mode 3 | |
| 1 | |
| Outlet 1 type | Socket |
| Dimensions (H x W x D) | 256 x 193 x 106 mm |
| Weight | 1.5 kg |
| Standard Warranty | 3 years |
| Not stated by manufacturer | |
| Not stated by manufacturer |
| 7.4 kW + 22 kW | |
| Supply Configuration | Single-phase or three-phase |
| Incoming Feed | Single feed |
| Total Power Output per Feed | 22 kW |
| Total Maximum Current Draw per Feed | 32 A |
| Max Conductor Size | 16 mm² |
| No | |
| Earthing Arrangements | TT / IT / TN-S / TN-C-S |
| Internal | |
| Internal | |
| Yes | |
| V2G Support | No |
| No | |
| No | |
| ISO 15118 Hardware Upgrade Required | No |
| No | |
| Built-in RCD Type | Type A |
| Built-in RCD Standard | EN 60947-2 |
| RCD Reset | Auto |
| Yes, per unit | |
| IP54 | |
| IK10 |
| No | |
| Not applicable | |
| PEN-Fault Reset | Not applicable |
| Can Be Disabled | Not applicable |
| Not applicable |
- No
- Yes
- Yes
- 2G/4G Modem
- Yes
- Built-In eSIM
- Yes
- Ethernet Daisy Chaining
- No
- No
- No
- No
- No
- Yes
- Yes
- No
- No
- No
- No
- No
- Smart Integration
- Yes (native)
| Yes | |
| CE Issued by | Manufacturer |
| Not applicable | |
| UKCA Issued by | Not applicable |
| Yes | |
| No | |
| BSI Kitemark | No |
| No | |
| Yes | |
| No | |
| No | |
| No | |
| G100 Export Limitation (V2G) | No |
| No | |
| No | |
| Yes | |
| Cybersecurity External testing | DEKRA |
| Yes | |
| Yes | |
| Yes | |
| EASEE/09725 | |
| Not applicable | |
| Not applicable |
Manufacturer comments
Additional manufacturer information

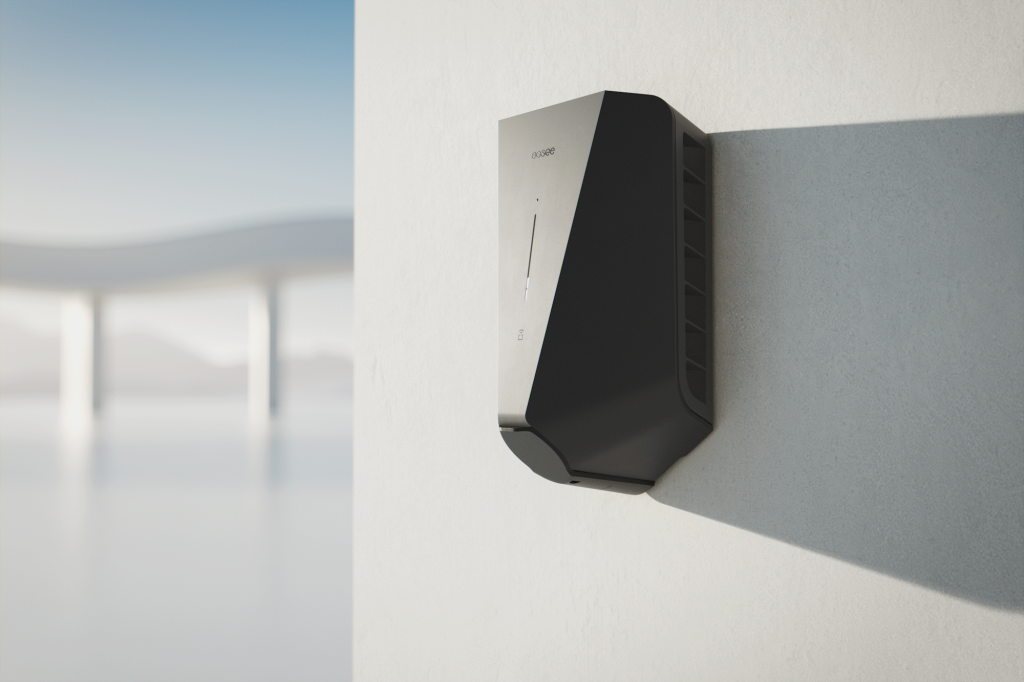

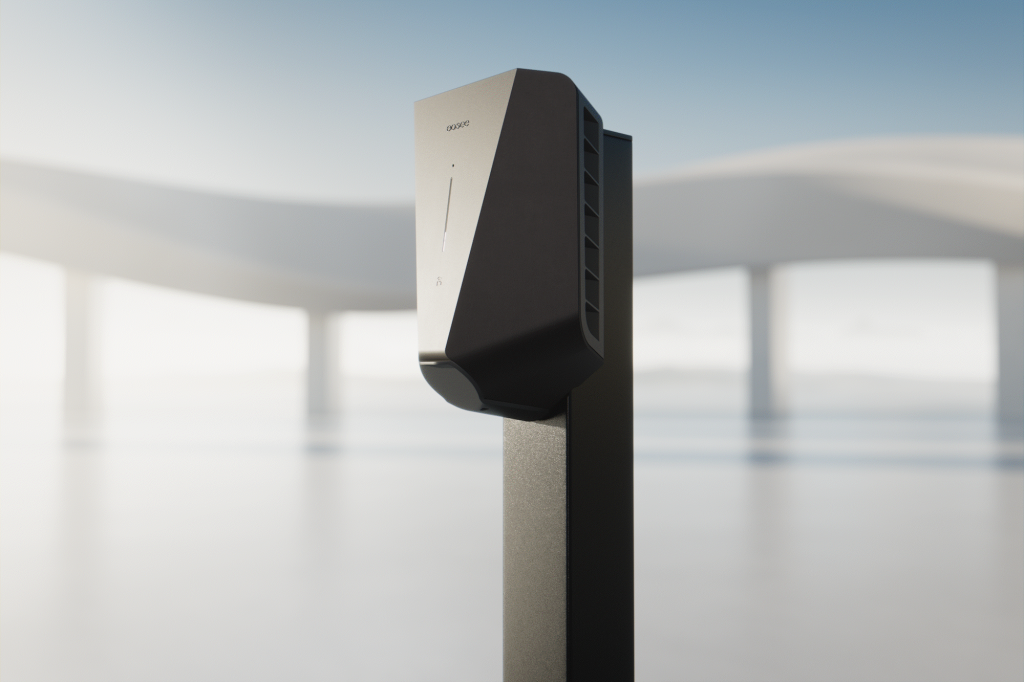

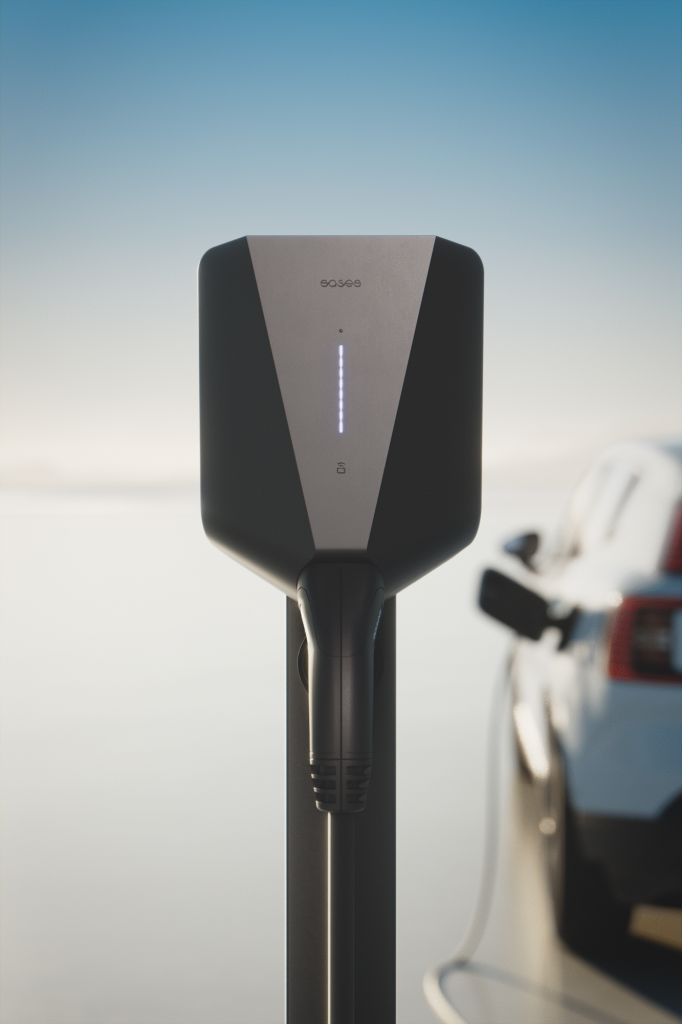

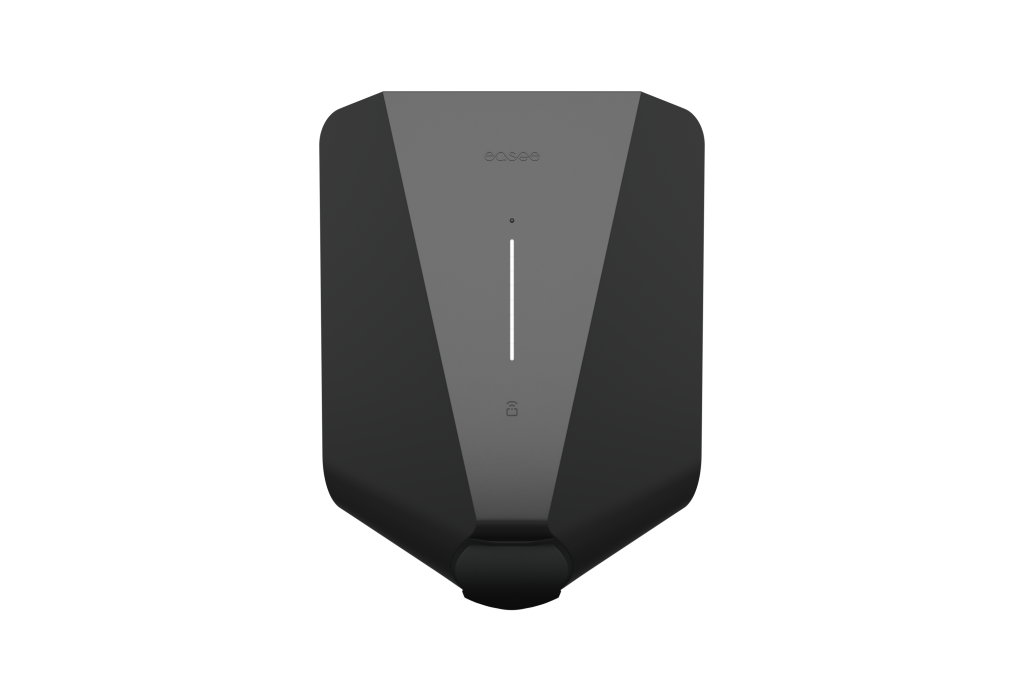

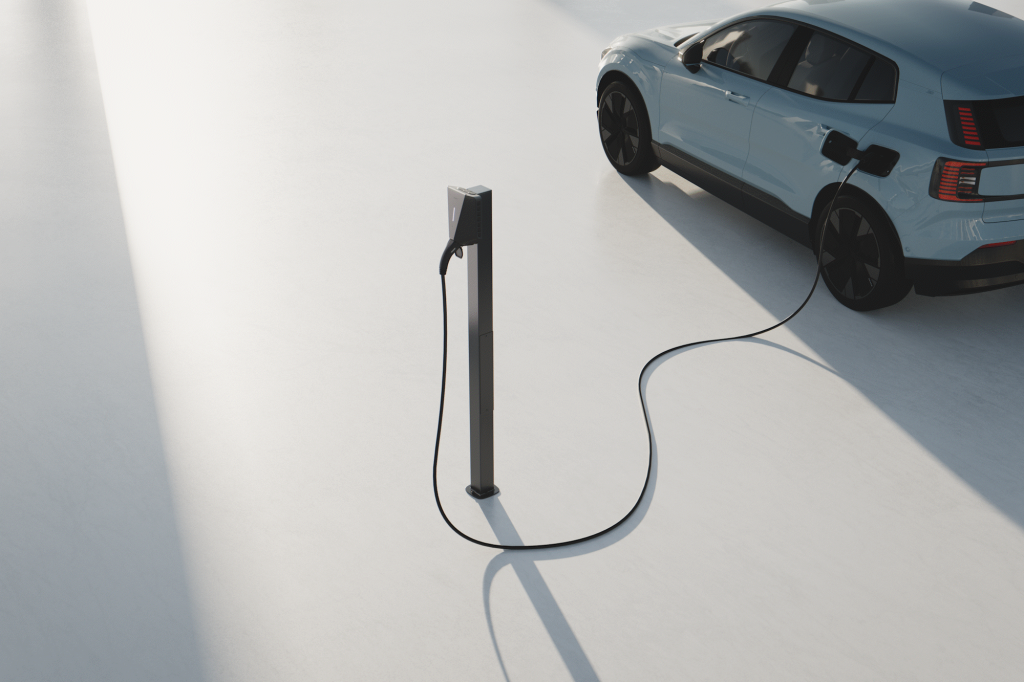

Product images
