EVEC
ESP01
- Model
- Pedestal Single 7.4kW

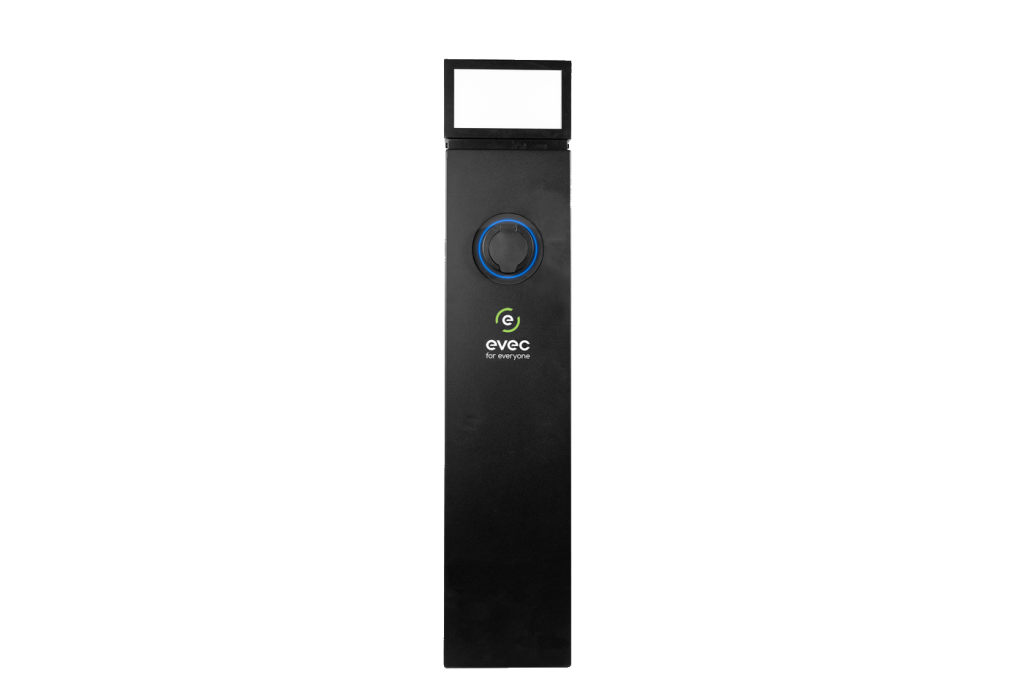

EVEC affordable universal 7.4kW EV charging pedestal- ESP01. Single Socket providing up to 7.4kW fast charging. ESP01 can offer a simple plug & charge or pay-to-charge solution via the EV driver’s smartphone through any chosen OCPP back-office management system, defaulted- Powered By Monta. The ESP01 is equipped with PEN fault detection, so there is no requirement for an earth rod, reducing installation costs.
OZEV Domestic
Yes
OZEV Commercial
Yes
ENA Connect Direct AC EV
EVECA/10286
ENA Power Generation
Not applicable
Technical Status Snapshot
Specification
| EVEC | |
| Model | ESP01 Pedestal Single 7.4kW |
| Part number / SKU | Not stated by manufacturer |
| Pedestal | |
| Commercial | |
| Primary Interface | LED |
| No | |
| Not applicable | |
| AC Mode 3 | |
| 1 | |
| Outlet 1 type | Socket |
| Dimensions (H x W x D) | 1200 x 250 x 250 mm |
| Weight | 33 kg |
| Standard Warranty | 3 years |
| 2 years | |
| Not stated by manufacturer |
| 7.4 kW | |
| Supply Configuration | Single-phase |
| Incoming Feed | Single feed |
| Total Power Output per Feed | 7.4 kW |
| Total Maximum Current Draw per Feed | 32 A |
| Max Conductor Size | Not stated by manufacturer |
| No | |
| Earthing Arrangements | TT / TN-S / TN-C-S |
| Internal | |
| Internal | |
| No | |
| V2G Support | No |
| No | |
| No | |
| ISO 15118 Hardware Upgrade Required | Not applicable |
| C40 1P+N per outlet | |
| Built-in RCD Type | Type A |
| Built-in RCD Standard | Unclassified |
| RCD Reset | Auto |
| Yes, per outlet | |
| IP54 | |
| No |
| Yes | |
| Yes | |
| PEN-Fault Reset | Auto |
| Can Be Disabled | No |
| No |
- Yes, single
- Yes
- Yes
- 2G/4G Modem
- Optional
- Built-In eSIM
- No
- Ethernet Daisy Chaining
- No
- No
- No
- No
- No
- Yes
- Yes
- No
- No
- No
- No
- No
- Smart Integration
- Yes (backend)
| Yes | |
| CE Issued by | Manufacturer |
| Yes | |
| UKCA Issued by | Manufacturer |
| No | |
| No | |
| BSI Kitemark | No |
| No | |
| No | |
| Yes | |
| No | |
| No | |
| G100 Export Limitation (V2G) | No |
| No | |
| Yes | |
| No | |
| Cybersecurity External testing | No |
| Yes | |
| Yes | |
| Yes | |
| EVECA/10286 | |
| Not applicable | |
| Not applicable |
