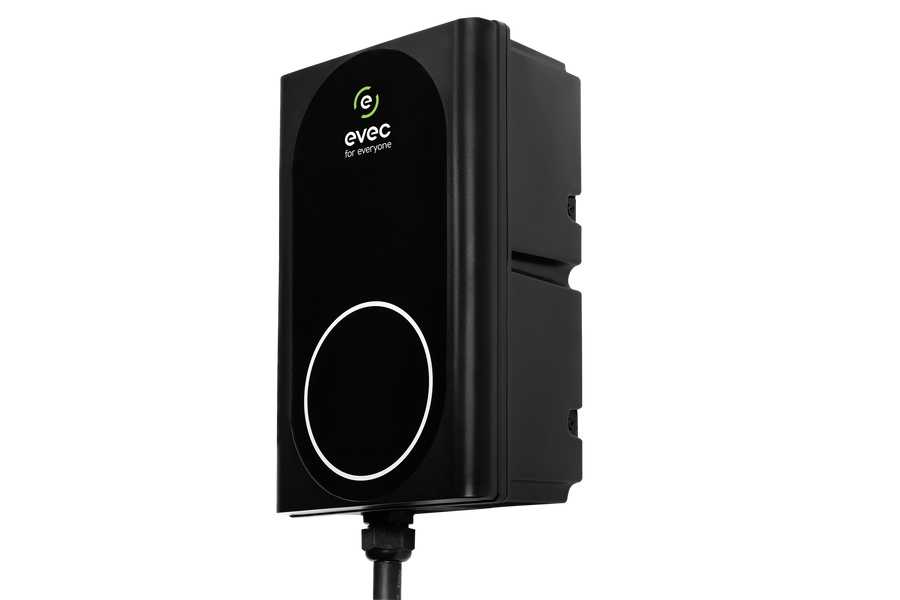

EVEC
VEC04
- Model
- Tethered 22kW
EVEC three-phase VEC04 is an affordable fully featured EV and PHEV tethered charger that is designed for a three-phase power supply, normally in commercial environments like the workplace. This enables the charger to charge the vehicle at up to 22kW’s, significantly faster than the domestic home version VEC03. Despite its low cost, it’s a compact, modern unit that doesn’t compromise on quality and is the perfect way to charge your Type-2 EV or PHEV. Better yet, pair the tethered charger with our wall cable holder to keep your cable organised and secure while it’s not in use.
OZEV Domestic
Yes
OZEV Commercial
Yes
ENA Connect Direct AC EV
EVECA/10285
ENA Power Generation
Not applicable
Technical Status Snapshot
Specification
| EVEC | |
| Model | VEC04 Tethered 22kW |
| Part number / SKU | Not stated by manufacturer |
| Surface Mounted | |
| Commercial | |
| Primary Interface | LED |
| No | |
| Not applicable | |
| AC Mode 3 | |
| 1 | |
| Outlet 1 type | Cable |
| Outlet 1 Cable Length | 5 m |
| Dimensions (H x W x D) | 320 x 193 x 105 mm |
| Weight | 5.0999999999999996 kg |
| Standard Warranty | 3 years |
| 2 years | |
| Not stated by manufacturer |
| 22 kW | |
| Supply Configuration | Three-phase |
| Incoming Feed | Single feed |
| Total Power Output per Feed | 22 kW |
| Total Maximum Current Draw per Feed | 32 A |
| Max Conductor Size | 6 mm² |
| No | |
| Earthing Arrangements | TT / TN-S / TN-C-S |
| Internal | |
| Internal | |
| No | |
| V2G Support | No |
| No | |
| No | |
| ISO 15118 Hardware Upgrade Required | Not applicable |
| 32 3P+N per unit | |
| Built-in RCD Type | Type A |
| Built-in RCD Standard | Unclassified |
| RCD Reset | Auto |
| Yes, per outlet | |
| IP54 | |
| No |
| Yes | |
| Yes | |
| PEN-Fault Reset | Auto |
| Can Be Disabled | No |
| No |
- Yes, single
- Yes
- Yes
- 2G/4G Modem
- Optional
- Built-In eSIM
- No
- Ethernet Daisy Chaining
- No
- No
- No
- No
- No
- Yes
- Yes
- No
- No
- No
- No
- No
- Smart Integration
- Yes (backend)
| Yes | |
| CE Issued by | Manufacturer |
| Yes | |
| UKCA Issued by | Manufacturer |
| No | |
| No | |
| BSI Kitemark | No |
| No | |
| No | |
| No | |
| No | |
| No | |
| G100 Export Limitation (V2G) | No |
| No | |
| Yes | |
| No | |
| Cybersecurity External testing | No |
| Yes | |
| Yes | |
| Yes | |
| EVECA/10285 | |
| Not applicable | |
| Not applicable |
